Module Connector Set MVS
The Module Connector Set (MVS) by Walther Systemtechnik enables a structured and standard-compliant connection of multiple fluid components from the Walther MODULAR series. Using standardised tie rods, it provides a secure, sealed and installation-friendly coupling of modules with a total length of up to fifteen module units. The smallest defined unit – such as the Walther plug-in plate – is assigned a value of 1, while the largest corresponds to a value of 3.

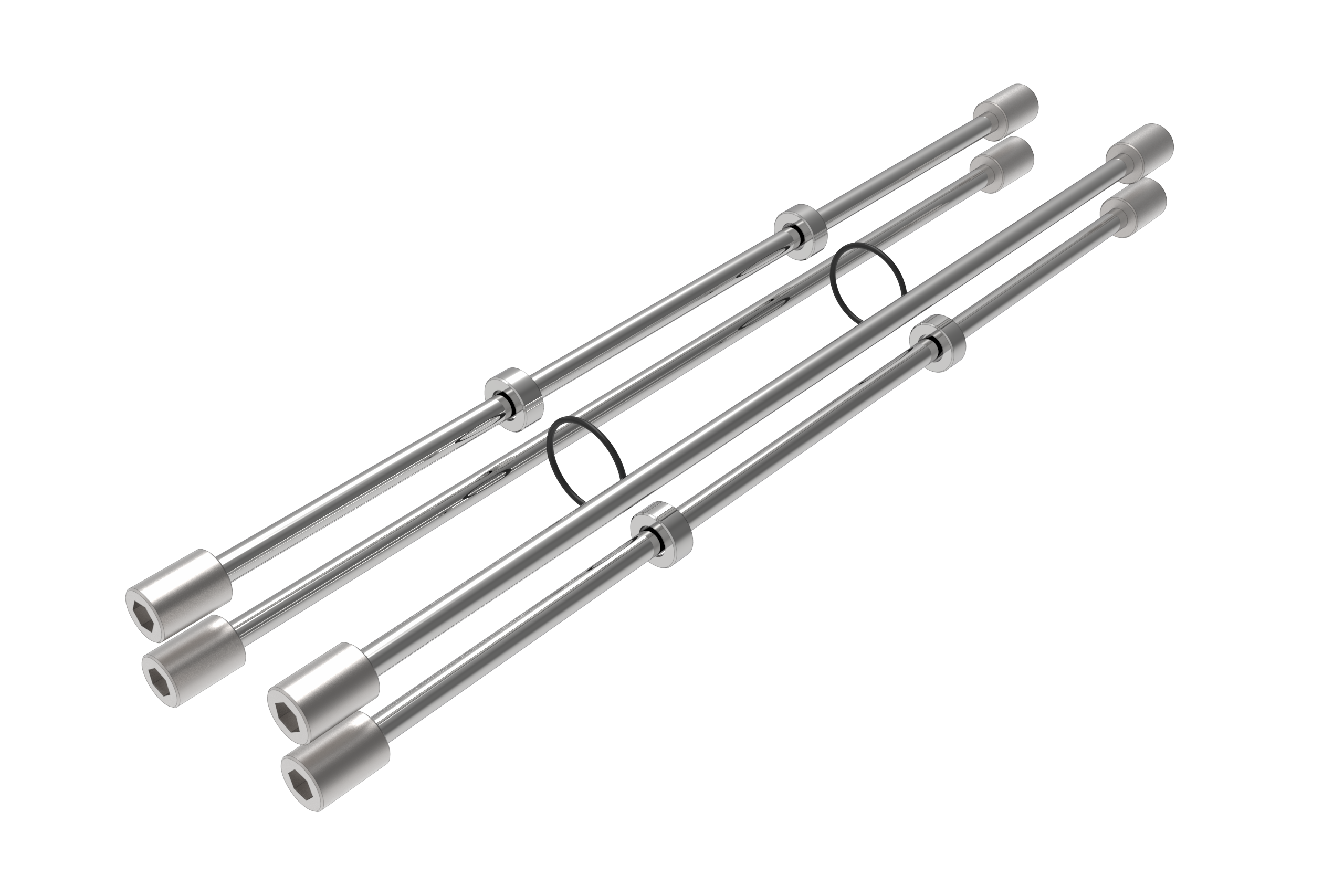

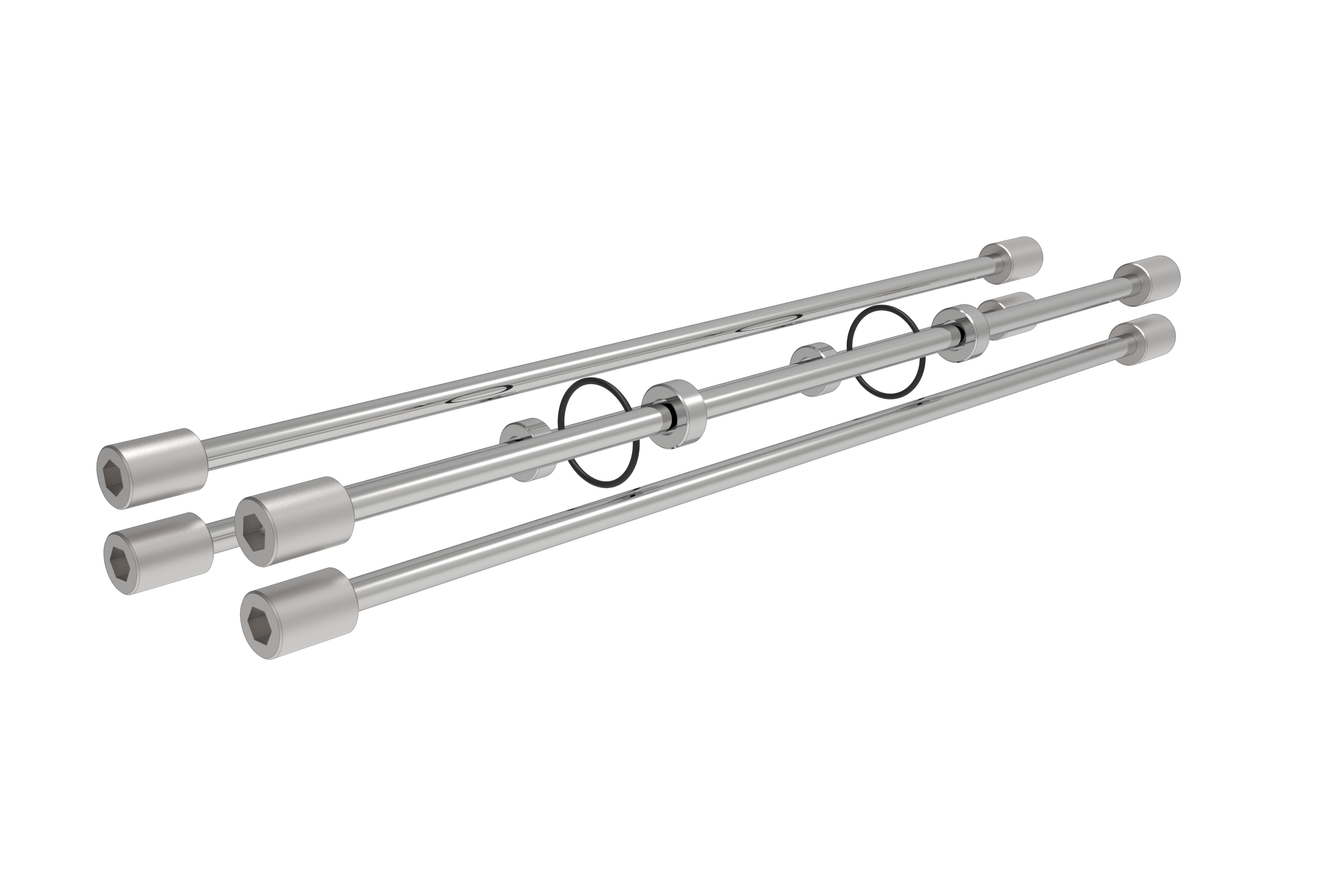

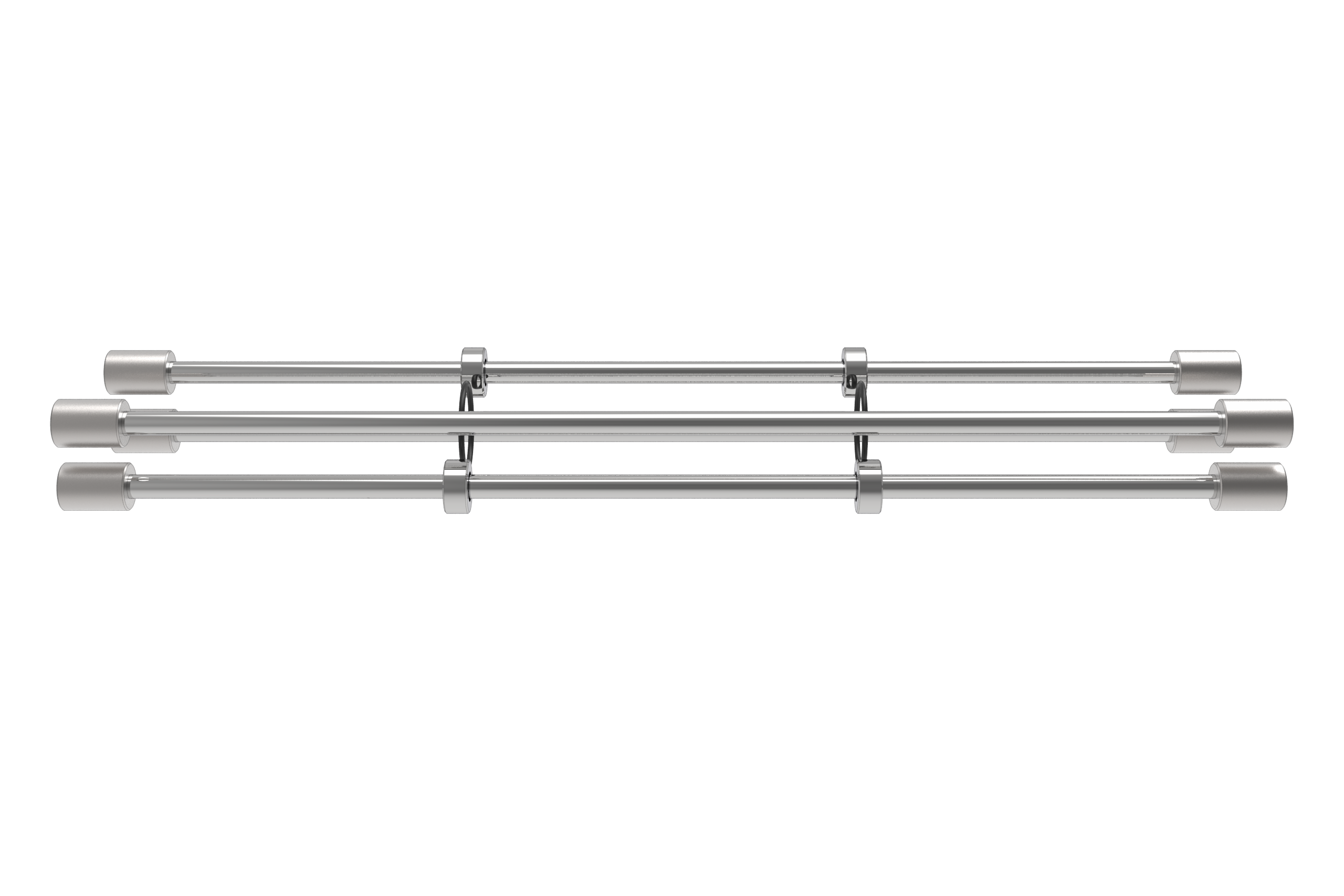

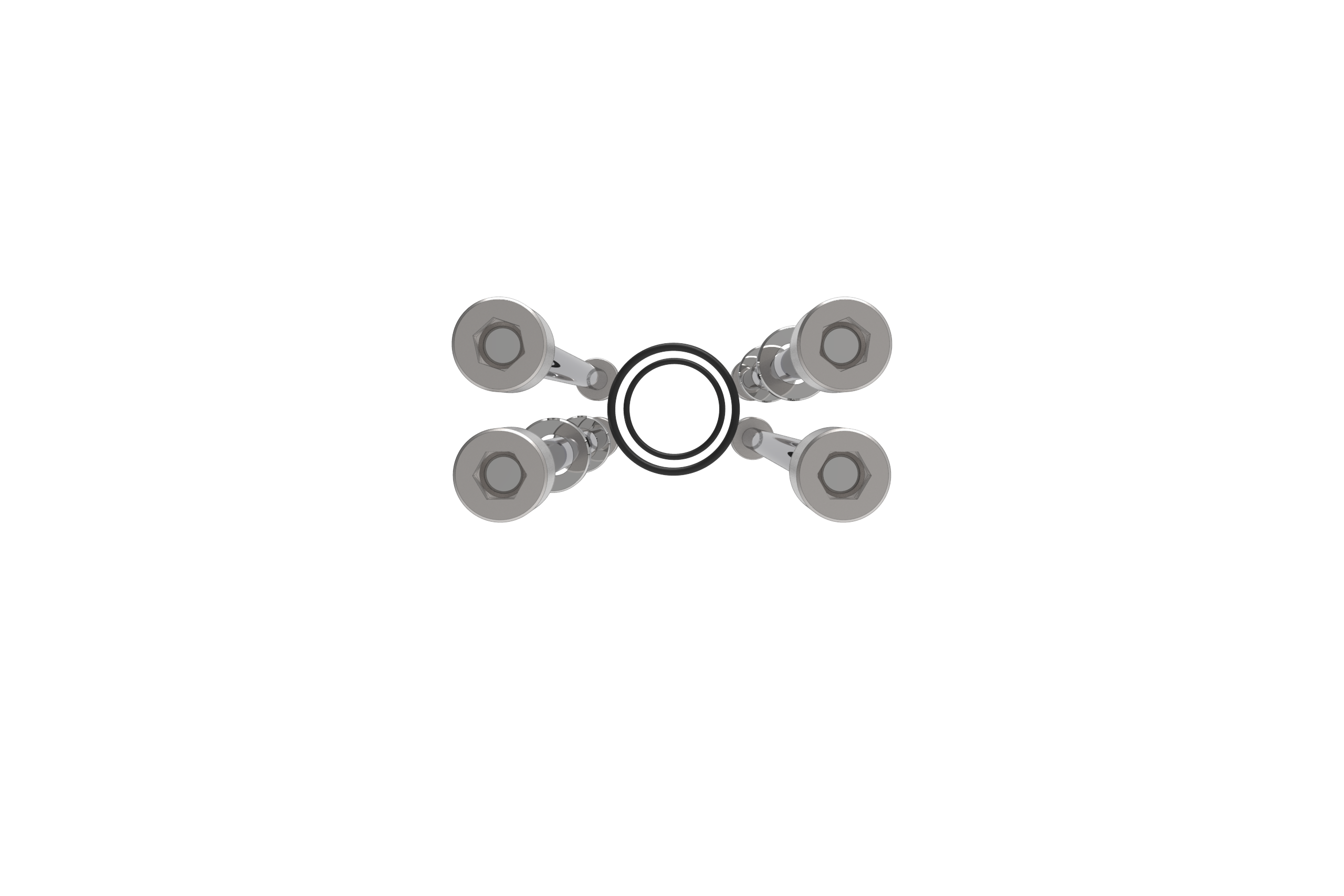

The connection is established without any separate screw fittings between the functional elements. Instead, the modules are precisely aligned axially using centring sleeves and clamped together using four tie rods. O-rings, which are placed between the mating faces of the modules, reliably seal the media-conducting channels. Assembly is quick and straightforward using two standard Allen keys. The maintenance-friendly design allows for easy replacement of individual components during servicing.
The Module Connector Set is available in fourteen length variants (module lengths 02 to 15). It allows for the flexible combination of modules of varying lengths to create functional assemblies, and offers an efficient solution for integrating Walther MODULAR components into new or existing fluid, lubrication and dispensing systems.
Examples of module types and their module lengths:
| Air Bubble Protection System (ABPS) | Module length 3 |
| Booster Pump (WBP) | Module length 3 |
| Filter System (WFS) | Module length 2 |
| Diagnostic Filter System (WFSD) | Module length 3 |
| Media Reservoir (WGC) | Module length 3 |
| Medium Switch (WGV-22) | Module length 2 |
| Material Pressure Regulator (WMDR) | Module length 2 |
| Flow Restrictor (WSB) | Module length 1 |
- easy integration, compact design, short installation times for the different modules into one module assembly group
- easy and fast connecting of required Walther modules through standard tension rod sets
- no special tools required
- operating temperature: 4 to 50 [°C]
- weight: 0,22 [kg/Module]
