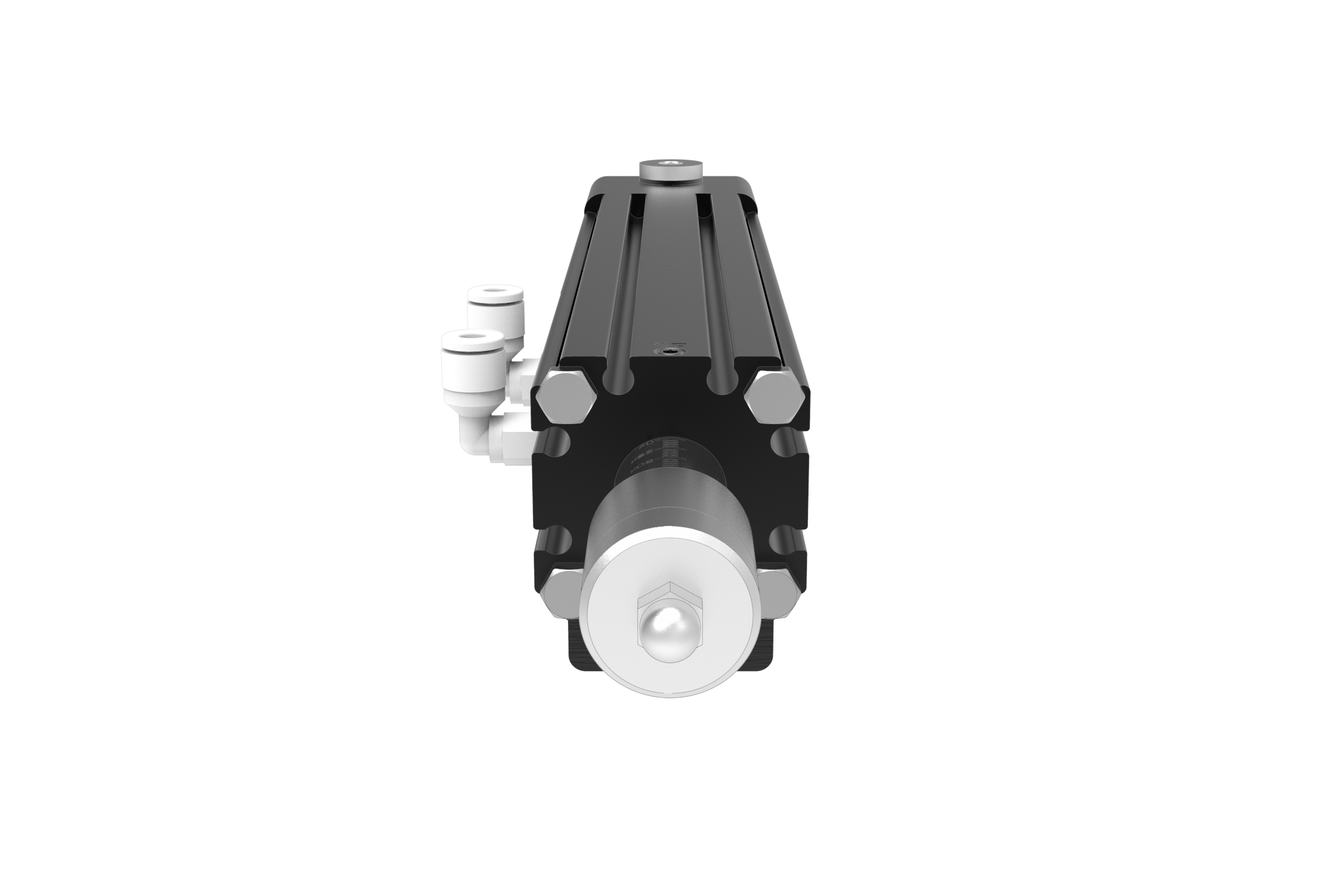

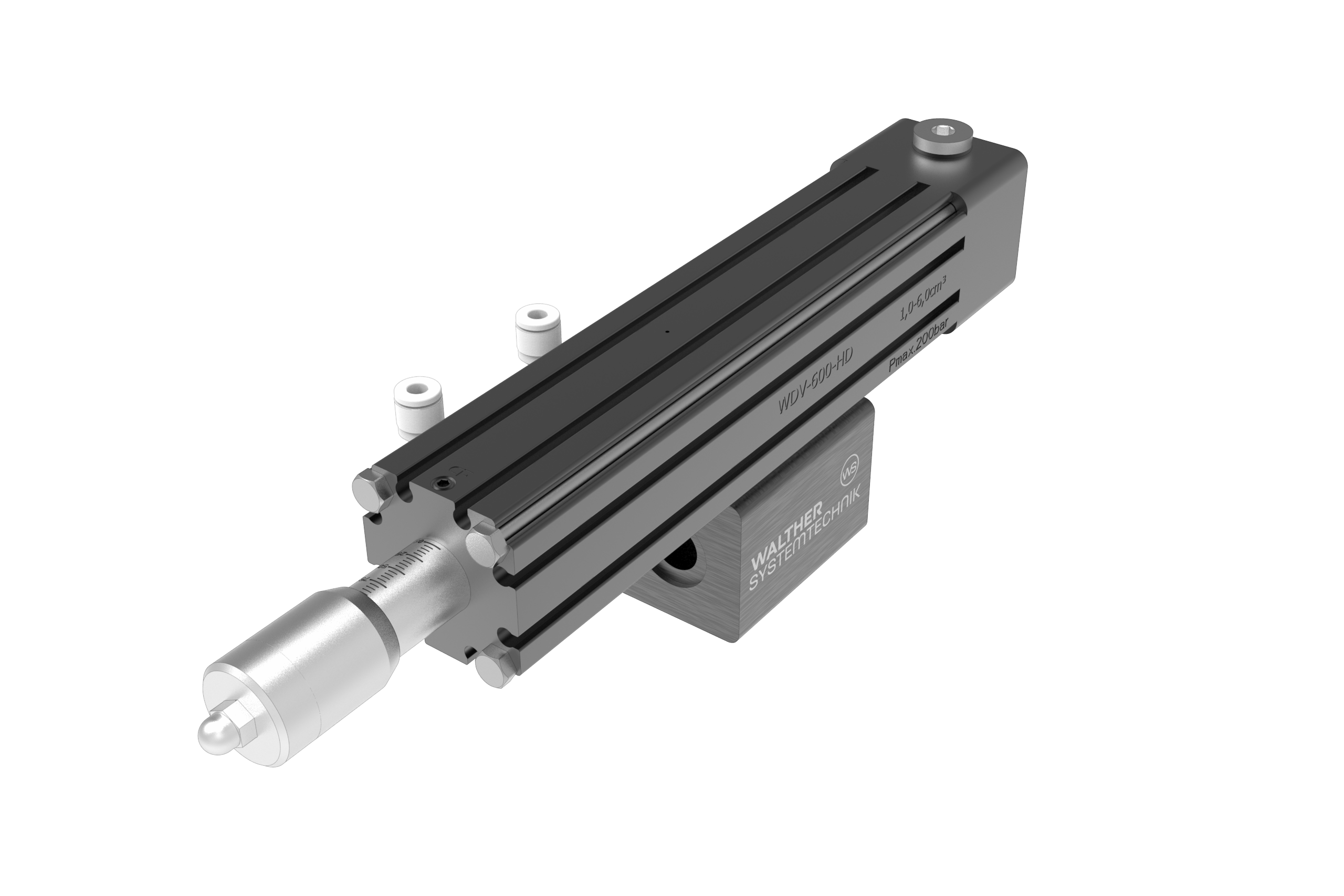

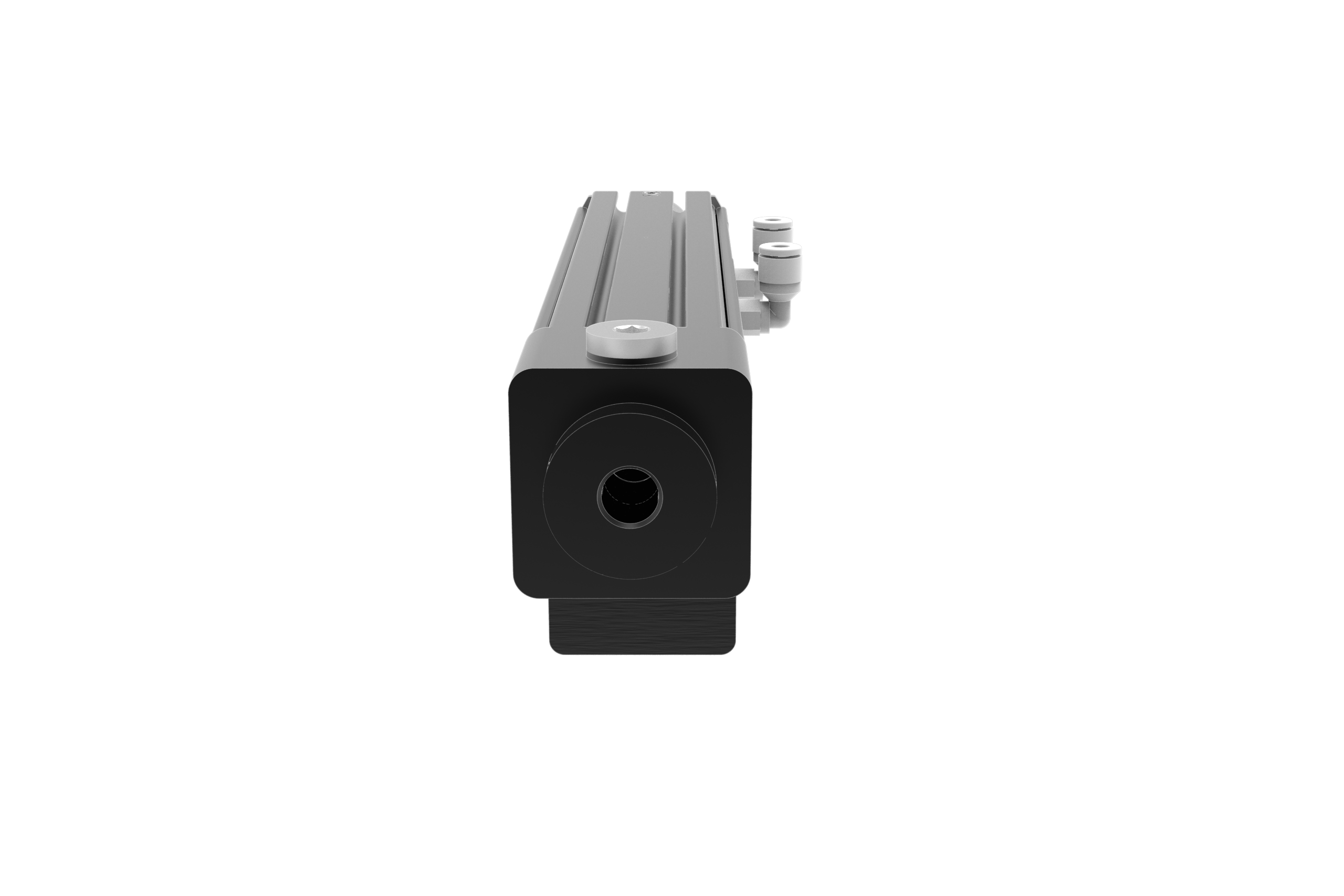

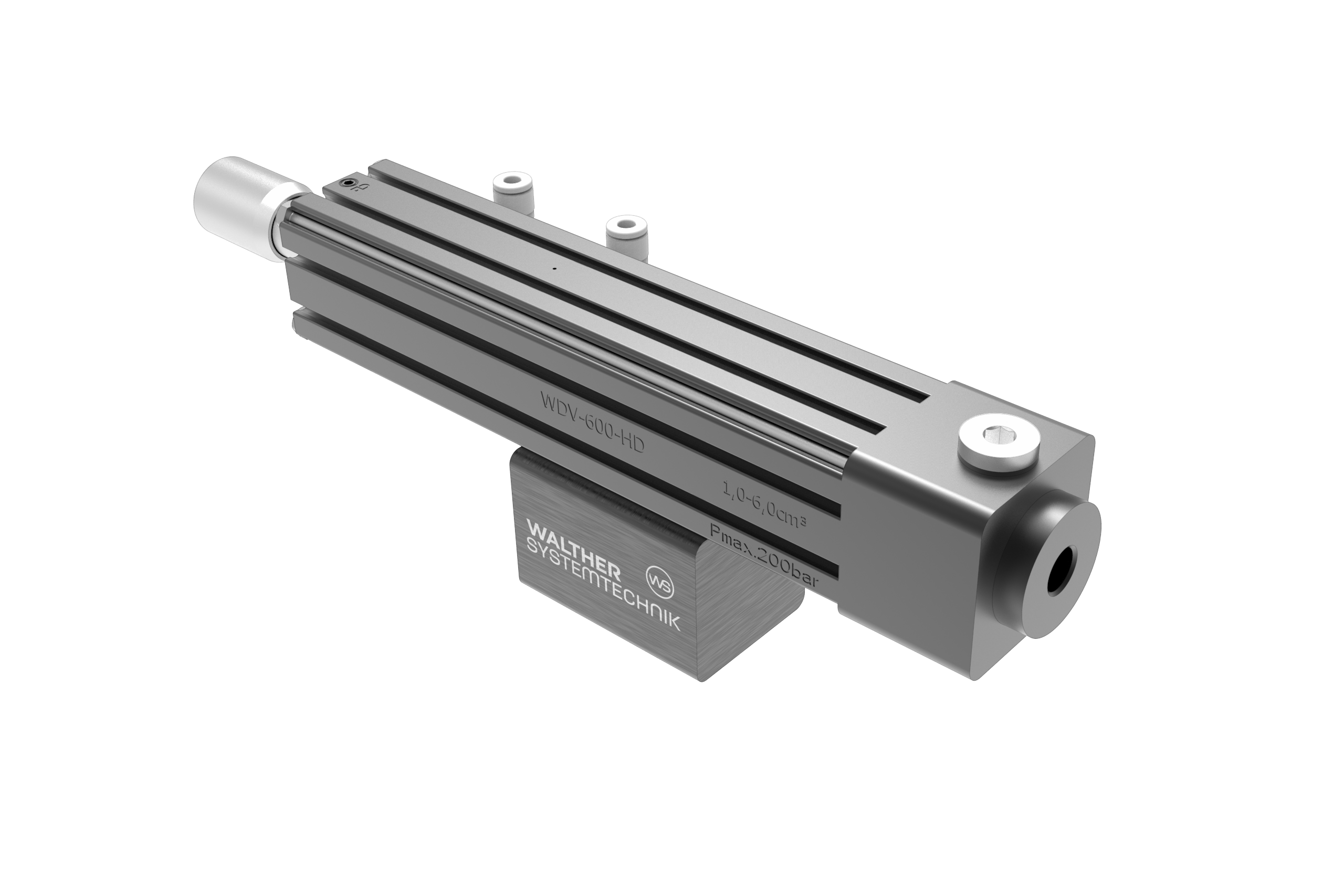

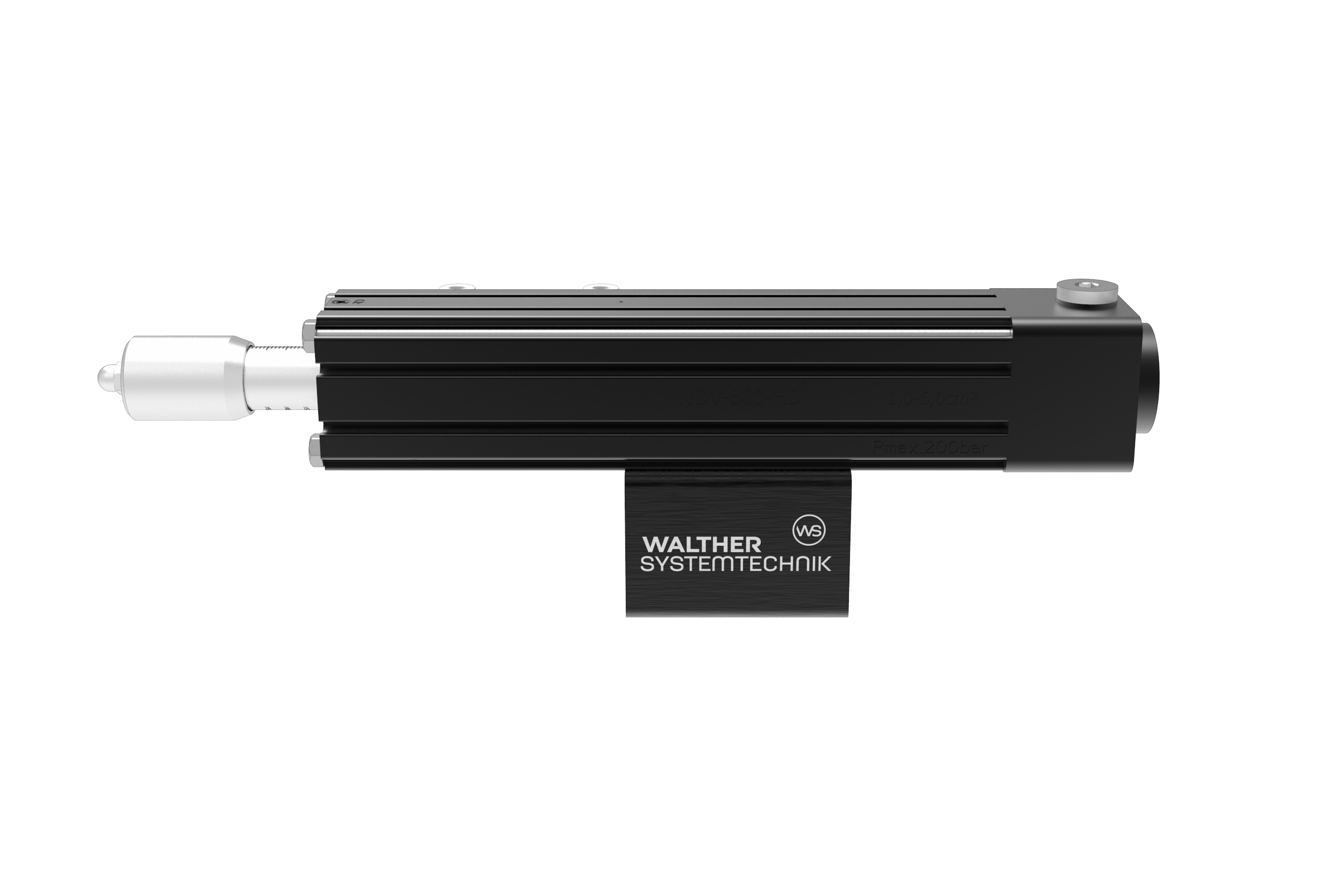

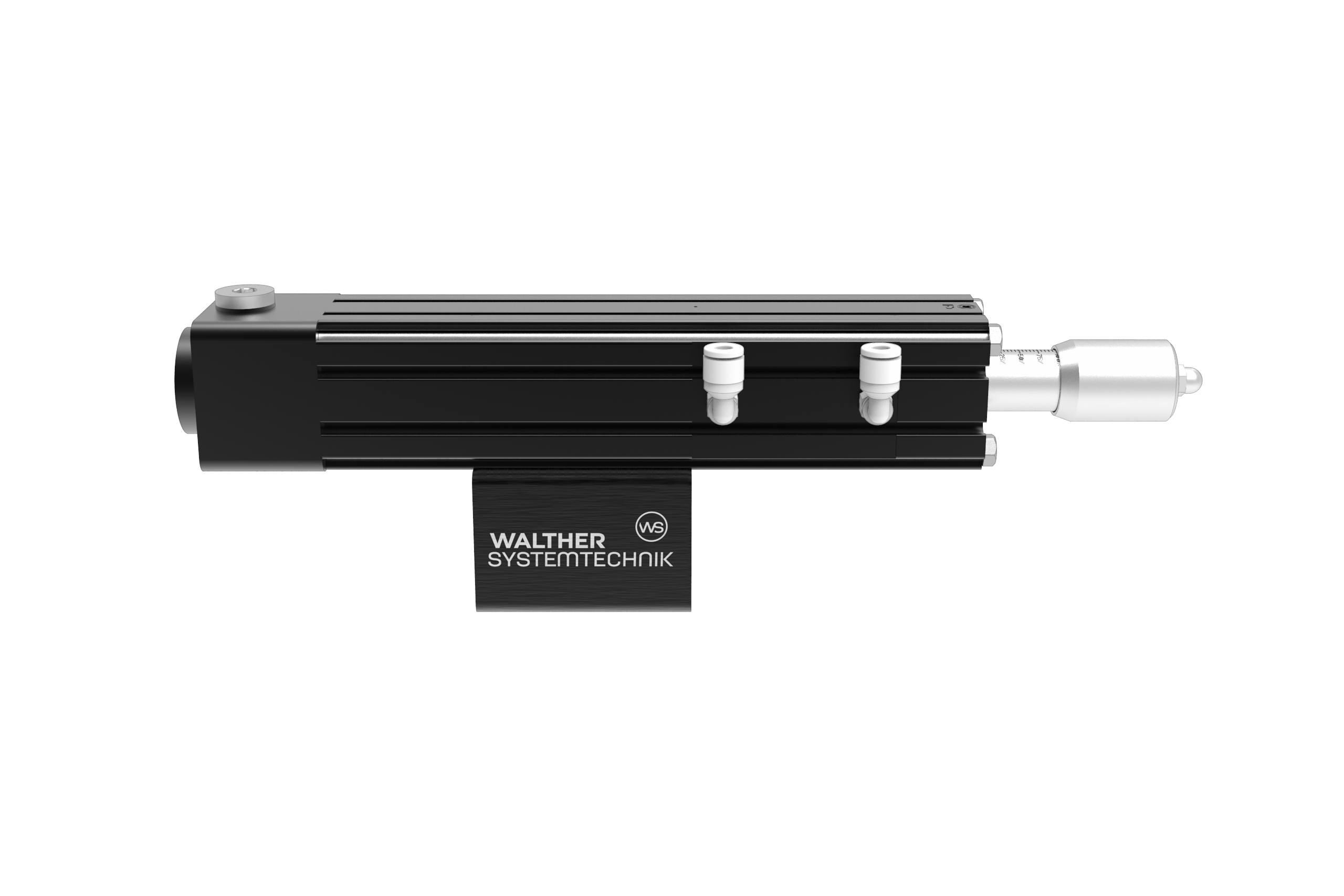

Volume Dosing Valve WDV

Optimally control your process with WDV volumetric Dosing Valves. Precisely apply defined quantities of viscous media. Easily adjust dosing with a regulating screw. Pneumatic control with external 5/2-way valve.

Prices excl. VAT plus shipping costs

Dosing range

Pressure range for allowable intel pressure

Product number: 50007982

Order code: WDV-600-HD

Highest process safety and a consistent and clean application: With the volumetric Dosing valves of the WDV series, you can exactly and precisely apply viscous media with a defined dosing quantity onto your components.

Thanks to a precise and clean application and highest repeatability, you will save with every dosing. Particularly for complex, costly media such as special lubricants which can be processed with the WDV valves in NLGI consistency ranges of 0 to 3.

The dosing quantity of a volumetric dosing valve can be continuously regulated via a regulating screw in the given dosing range; an external 5/2-way valve is used for controlling.

Dosing valves of the WDV series are characterized by a high reliability and little maintenance effort: modern sealing elements such as Glyd rings guarantee a long lifetime even with high inlet pressures of up to 200 bar or media with particles.
