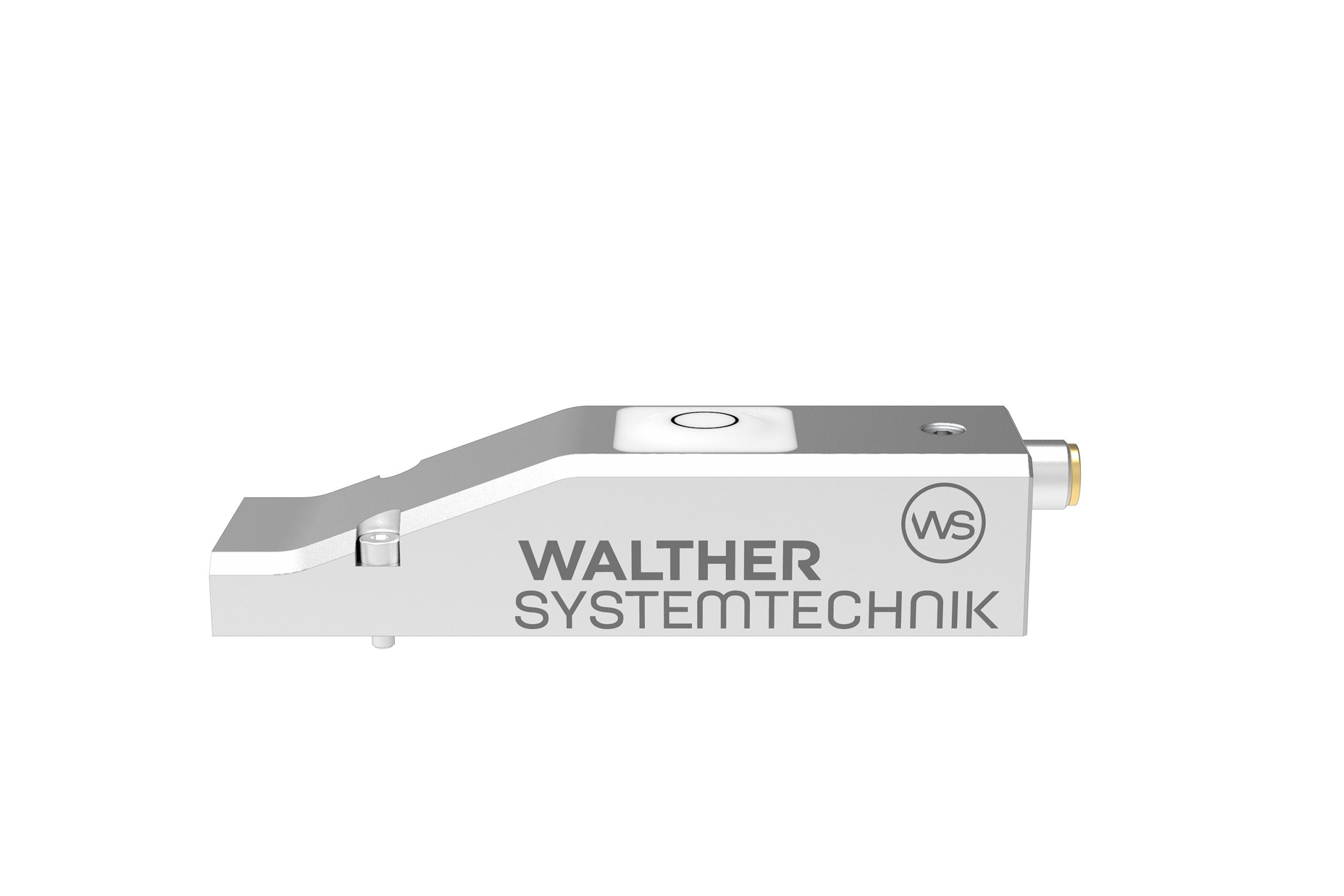

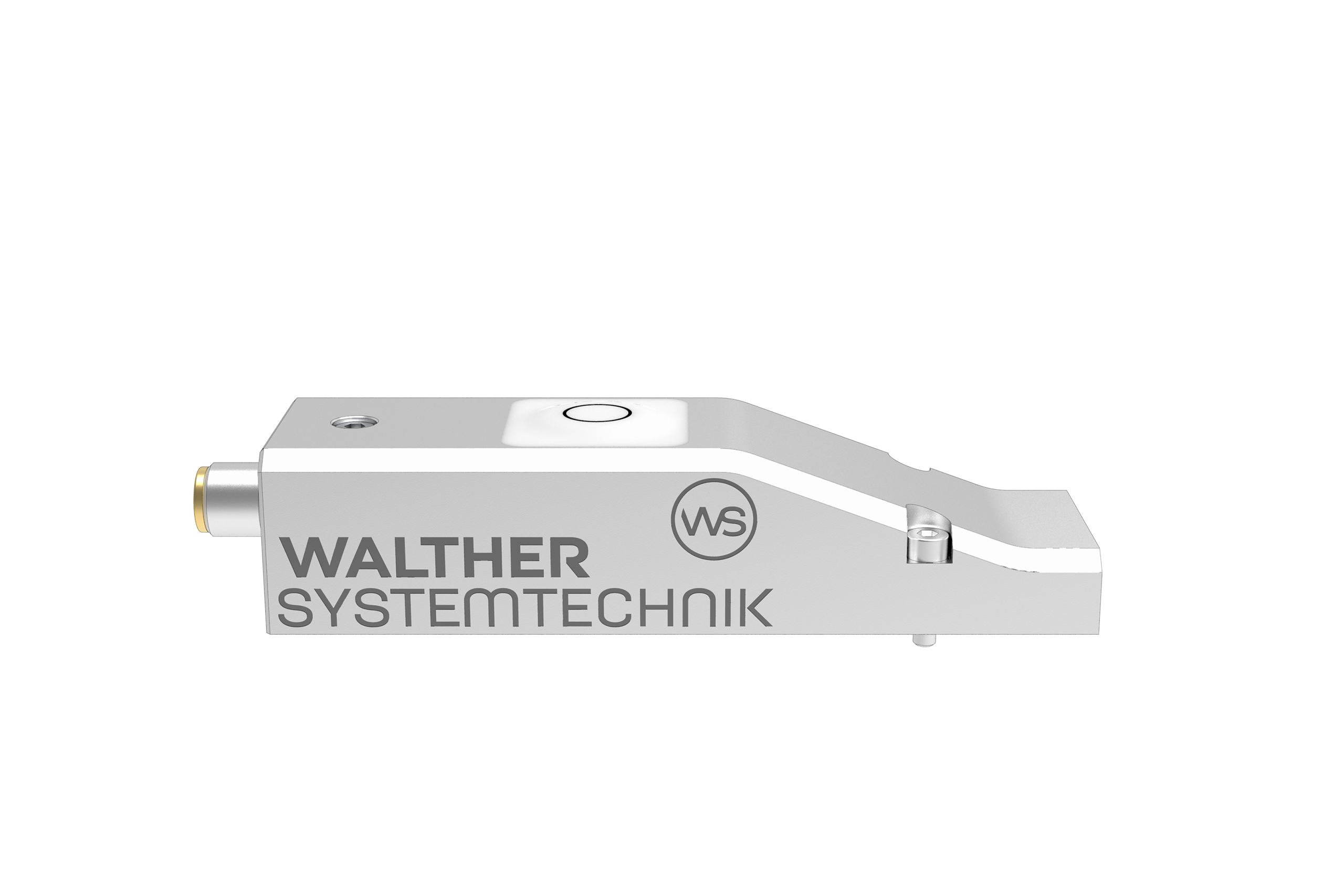

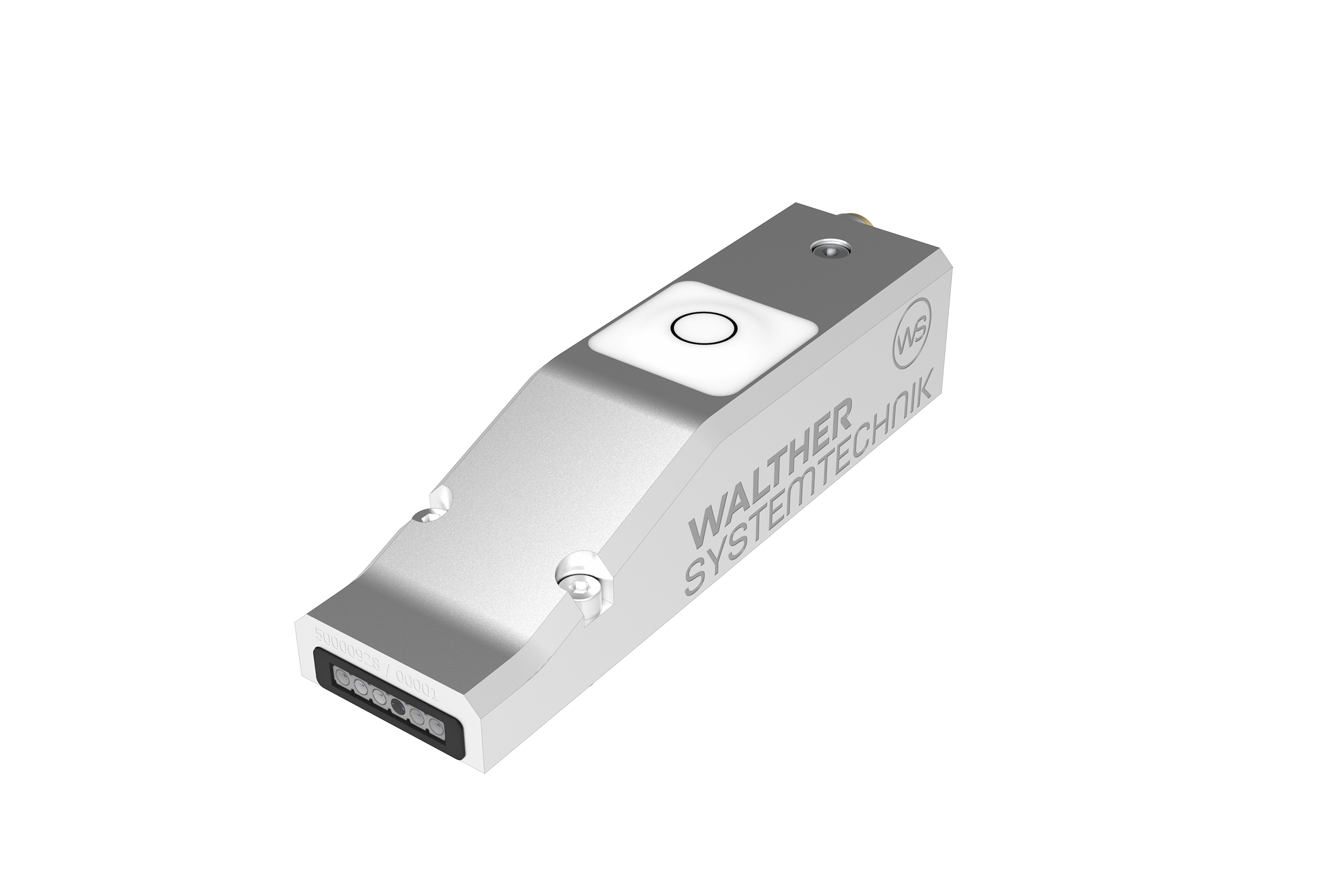

Valve Control Unit WVSE
The WVSE valve control unit combines maximum flexibility with intelligent control technology. It enables precise control of a wide variety of valves and actuators – from classic 24 V valve coils and peak-and-hold applications to CAN-based systems.
Thanks to freely configurable digital and analogue inputs and outputs, the control can be adapted precisely to your application. An integrated web server and the Modbus TCP interface ensure full transparency, simple parameterisation and reliable process monitoring – both locally and in the network.
The compact design and wide range of connections enable easy integration into dosing and application processes. This allows application valves to be controlled quickly, flexibly and reliably – whether for bonding, sealing, potting or lubricating.
The WVSE valve control unit provides you with a powerful, modular and future-proof solution for the precise control of application valves in industrial production.
- Precise control of 24 V valve coils and Peak'n'Hold actuators
- CAN interface for external components and actuators
- Freely usable digital and analogue I/Os
- Integrated web server for easy configuration and monitoring
- Modbus TCP for transparent communication
- Flexible use in all dosing and application processes
- Supply voltage: 24V
- Control voltage: 24V
- Operating temperature: 0-80°C
- Weight: 64g
- Dimensions (L x W x H): 97.5 x 25.0 x 23.5 [mm]
